Author Topic: Connecting wing servos en-mass  (Read 17760 times)

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« on: July 19, 2010, 12:26:58 PM »

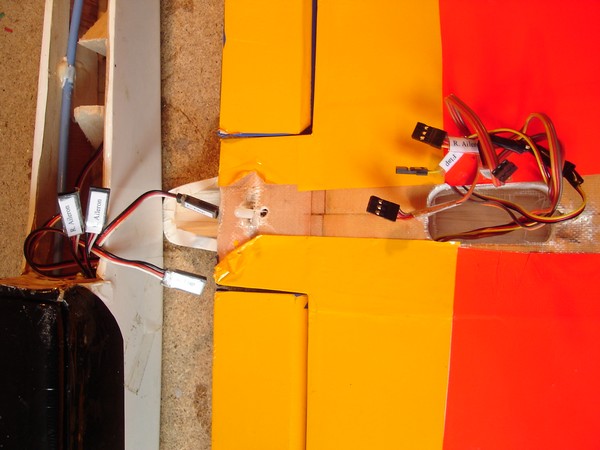

Not so much a problem as an annoyance, every time I take my Phase 6 to the slope and assemble the wings to the fus. I have to connect four separate servo cables. 2 for the ailerons and 2 for the flaps.

On more than one occasion I’ve fitted the wing only to find one (or more) of the servos has been connected up wrongly, EEERrrrrrrr. :evil:

Where can I get a single connector that would enable me to connect all the wing servos at once and be sure they are all connected correctly? :?

Keith

Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

DennisZ

  • Newbie
  • *
  • Posts: 168
    • View Profile
Re: Connecting wing servos en-mass
« Reply #1 on: July 19, 2010, 13:38:53 PM »
Quote from: "Happy Days"

Where can I get a single connector that would enable me to connect all the wing servos at once and be sure they are all connected correctly? :?


Hi Keith,

I am using these http://brchobbies.com/?page=shop&action=additem&item=1032
for my Spirit.

In theory you may fit four servos into one 6pin connector.

added:
found the picture
http://static.rcgroups.com/forums/attachments/2/3/6/5/5/a346038-46-wiring%20harness%204.gif?d=1101278566
Logged

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« Reply #2 on: July 19, 2010, 14:00:17 PM »
Brilliant Dennis! That’s exactly the type of thing I’ve been looking for. :clap:

Many thanks for your info. :D

Keith
Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

Fred

  • Slope Soaring is not a crime!
  • Administrator
  • Newbie
  • *****
  • Posts: 5149
  • Gliderist Simplex
    • View Profile
    • http://www.gliderireland.net
Connecting wing servos en-mass
« Reply #3 on: July 19, 2010, 14:05:48 PM »
Hi Keith,

You can also use DB9 plugs (for computers), easier to solder IMO, but much bigger!
Logged
Education is important, but flying RC planes and gliders is importanter!

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« Reply #4 on: July 19, 2010, 15:44:23 PM »
Er?…….DB9 plugs :shock: …….IMO? :shock:  :shock:

You forget Fred, I’m a total nerd, (or Geek, I can’t remember which :oops: )!

What does IMO stand for, :!:  and where could I get a DB9 plug? :?:

Love and kisses,

Keith
Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

Fred

  • Slope Soaring is not a crime!
  • Administrator
  • Newbie
  • *****
  • Posts: 5149
  • Gliderist Simplex
    • View Profile
    • http://www.gliderireland.net
Connecting wing servos en-mass
« Reply #5 on: July 19, 2010, 15:49:59 PM »
Hi Honey,

In My Opinion (sorry  :oops: )

DB9, at Maplin, Peats etc etc. I use that as this is easier to solder for me (and my poor skills!), and the other advantage, is that you have enough room to double / triple the contacts, or even use a bigger plug, like the DB12, but that's really for big models, a bit OTT (Over The Top  :P ) for a small ish glider.
You can have DB9 with gold contacts too, but the MPX (Multiplex  :P ) green plugs are fine too, just a question of taste (and soldering habilities in my case!)
Logged
Education is important, but flying RC planes and gliders is importanter!

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« Reply #6 on: July 19, 2010, 16:06:03 PM »
Thanks Fred, I ‘take on board’ what you say about a larger connector being easier to work with.

The total space that the connector, (that is both halves of the connector joined) would have to sit in is 35mm x 40mm. Would a DB9 if in that little amount of space?

LYA

K.
Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

DennisZ

  • Newbie
  • *
  • Posts: 168
    • View Profile
Connecting wing servos en-mass
« Reply #7 on: July 19, 2010, 16:14:13 PM »
Quote from: "Happy Days"
would have to sit in is 35mm x 40mm. Would a DB9 if in that little amount of space?

.


http://www.maplin.co.uk/Module.aspx?ModuleNo=1113&OrderCode=RK60Q

Overall length:   31mm
Logged

DennisZ

  • Newbie
  • *
  • Posts: 168
    • View Profile
Connecting wing servos en-mass
« Reply #8 on: July 19, 2010, 16:17:29 PM »
Quote from: "Happy Days"
a larger connector being easier to work with..


yeh, Fred is right here - you will need a "third hand" to solder those green connectors .
Logged

Fred

  • Slope Soaring is not a crime!
  • Administrator
  • Newbie
  • *****
  • Posts: 5149
  • Gliderist Simplex
    • View Profile
    • http://www.gliderireland.net
Connecting wing servos en-mass
« Reply #9 on: July 19, 2010, 16:18:37 PM »
LYA ?

Love you all ?  :mrgreen:
Logged
Education is important, but flying RC planes and gliders is importanter!

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« Reply #10 on: July 19, 2010, 16:40:07 PM »
I thought Frenchmen were renown the world over as being the most romantic………..you should know LYA = Love You Always

Thanks for your info guys :clap:

K.
Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« Reply #11 on: July 19, 2010, 17:02:18 PM »
Hhmmm…..Just as a foot note, One 9 pin DB9 plug & socket from Maplin cost £2.49. Then they want to charge me £8.75 to despatch the darn thing!!! So the total cost would be £11.41 for something worth £2.49. :evil:

Does anyone on this forum regularly order stuff from Maplin?
Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

IceWind

  • Newbie
  • *
  • Posts: 286
    • View Profile
    • http://icewind.no.sapo.pt
Connecting wing servos en-mass
« Reply #12 on: July 19, 2010, 17:42:19 PM »
Maplin? I'd rather burn notes out in the street.

Try Farnell.ie, I can't get it quite right but some things are shipped for free some don't.
I also use futurlec.com, it's a excellent shop with a fixed rate of shipping, it would be $5 for that part and the part woudl cost $0.50. But it's from Singapore so if time is a problem forget it as it takes some weeks.
I placed an order some days ago if I had seen this then I'd gladly get that for you. :(
Logged
..Nando

Happy Days

  • ISR Club Member
  • Newbie
  • *
  • Posts: 2184
    • View Profile
Connecting wing servos en-mass
« Reply #13 on: July 19, 2010, 18:00:18 PM »
Fantastic Nando! :clap:

I’ve just placed the order with Futurlec. Total cost including shipping = $6.00 (€4.50)

Thank you very much for your help.

(If you ask me nicely, I might teach you to fly a slope soarer! :wink:  I’ve got a buddy box and plenty of models for you to try!!!)

Thanks, :D

Keith
Logged
Try not to run out of airspeed, altitude and ideas....... all at the same time.

IceWind

  • Newbie
  • *
  • Posts: 286
    • View Profile
    • http://icewind.no.sapo.pt
Connecting wing servos en-mass
« Reply #14 on: July 19, 2010, 18:17:22 PM »
Np, I'm glad I could be of help.
Their service is quite nice, you should receive an email with a postal tracking code, they do it for every single order.

Keep that in mind I may make you stick to your promise. :)
Logged
..Nando
